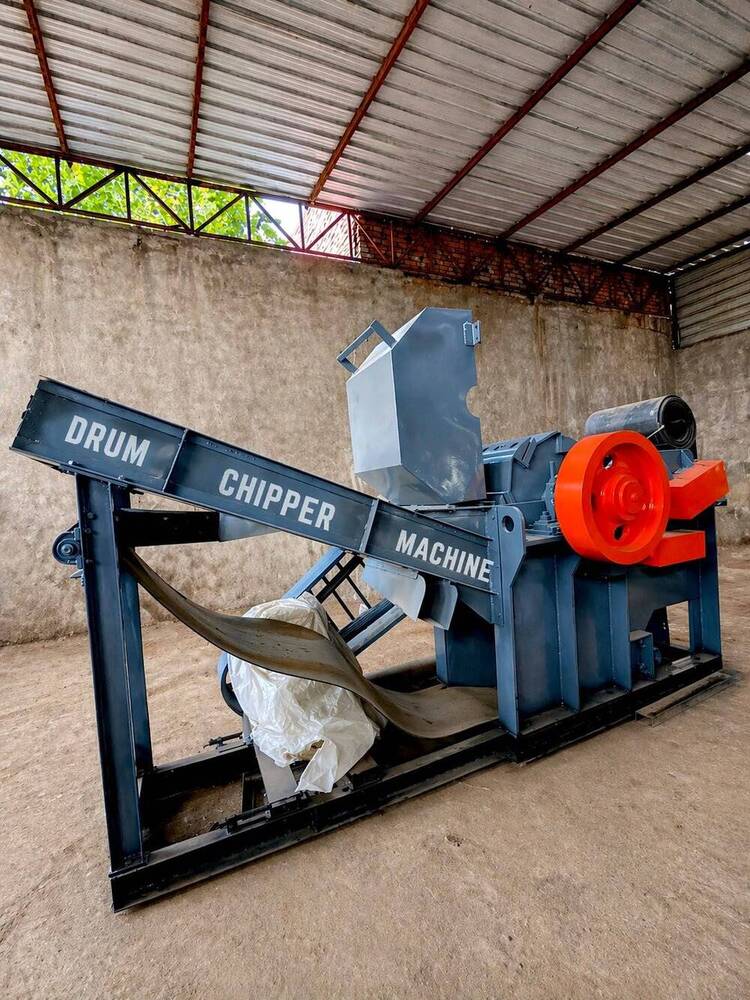

15 TPH Drum Chipper Machine

Get a Price/Quote

MOQ : 1 Unit

15 TPH Drum Chipper Machine Specification

Product Type
Drum Chipper Machine

Machine Type
Wood Chipper

Machine Style
Horizontal, Stationary

Capacity
15 TPH (Tons Per Hour)

Voltage
415 V

Power
150 Horsepower (HP)

Automation
Semi-Automatic / Automatic (based on model)

Motor
Heavy Duty Three Phase Electric Motor

Speed
1200-1500 RPM

Dimension (L*W*H)
3300 x 1800 x 1600 mm (approx.)

Weight
Approx. 4200 kg

Color
Blue/Grey

Feed Material
Wood Logs, Timber, Bamboo, Branches

Chipping Knife Material
Alloy Steel / HCHCR (High Carbon High Chromium)

Drive Mode
Belt and Pulley Drive System

Surface Treatment
Anti-Corrosion Painted Finish

Knife Quantity
3-4 Rotating/Chipping Knives (subject to model)

Feeding Mechanism
Hydraulic / Pneumatic or Manual Conveyor Feed

Safety Features
Emergency Stop, Overload Protection

Frame Structure
Heavy Duty Mild Steel Structure

Maintenance
Easy Access Lubrication and Blade Replacement

Output Size Range
10 mm to 35 mm (Adjustable with Screen)

Application
Plywood, MDF, Biomass, Paper, Composting

Energy Consumption
Low/Optimized for Maximum Output

15 TPH Drum Chipper Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
10 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

15 TPH Drum Chipper Machine About

Our Drum Type Wood Chippers are powerful heavyduty and highly efficient machines designed to process all types of solid wood hardwood softwood logs branches and wood waste of any diameter into uniform wood chips We manufacture and supply Drum Wood Chippers in capacities ranging from 1 TPH to 30 TPH and above with larger capacities also available according to customer requirements Every machine is custombuilt to match the customers raw material log diameter required chip size and production capacity ensuring maximum performance and reliability.

Engineered for Versatility and Efficiency

The 15 TPH Drum Chipper excels in handling various feed materials-wood logs, bamboo, timber, and branches-making it suitable for numerous industries. The adjustable output size and heavy-duty frame structure ensure consistent and reliable performance, even during continuous operations.

Cutting-Edge Knife Technology

Fitted with 3-4 alloy steel or HCHCR knives, the chipper delivers uniform chip sizes while ensuring durability and minimal wear. Blade replacements and lubrication are straightforward, maintaining optimal efficiency and extending machine lifespan.

Safety and Reliability Built-In

Integrated safety features, including an emergency stop and overload protection, safeguard operators and equipment. The anti-corrosion painted finish and optimized energy consumption further enhance dependability and reduce operating costs, making it an ideal choice for Indian manufacturers and suppliers.

FAQ's of 15 TPH Drum Chipper Machine:

Q: How does the feeding mechanism work in the 15 TPH Drum Chipper Machine?

A: The chipper machine offers multiple feeding options: hydraulic, pneumatic, or manual conveyor feed. This variety allows users to select the most suitable method according to their operational requirements, ensuring continuous and efficient material input.

Q: What materials can be processed with this drum chipper, and what is its output size range?

A: This machine is designed for wood logs, timber, bamboo, and branches. It produces wood chips with an adjustable size range from 10 mm to 35 mm, which can be set using different screens depending on end-use needs.

Q: When should I replace the chipping knives, and what are they made of?

A: Chipping knives should be replaced when chip size becomes inconsistent or visible wear is observed. The knives are crafted from high-quality alloy steel or HCHCR (High Carbon High Chromium), providing excellent cutting performance and extended durability.

Q: Where is the 15 TPH Drum Chipper typically installed and used?

A: The drum chipper is generally installed in plywood, MDF, biomass, paper, and composting plants across India. Its stationary, horizontal design fits seamlessly within industrial processing lines.

Q: What is the process for routine maintenance, and how easy is it to service this machine?

A: Routine maintenance includes regular lubrication of moving parts and timely blade replacements. The machine is engineered for easy access to key components, making maintenance tasks straightforward and minimizing downtime.

Q: How does this wood chipper benefit production facilities?

A: The chipper offers high-capacity chipping (15 TPH), adjustable output size, reliable safety features, and low power consumption. These attributes translate to enhanced productivity, cost savings, and safer working conditions for production facilities.
